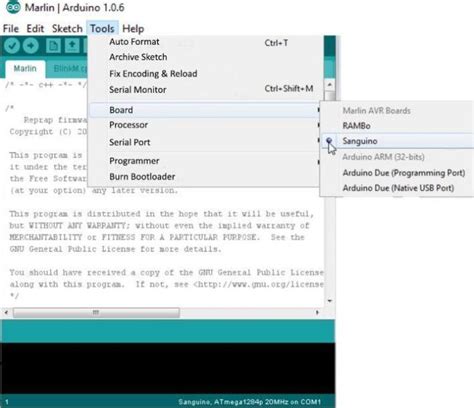

Setting Printer Dimensions in Marlin Firmware Marlin Firmware Printer Dimensions

Unlocking the true potential of your 3D printer often involves delving deeper than just slicing software and filament choices. Indeed, the firmware itself, the very core of your machine’s operation, holds the key to fine-tuning performance and achieving optimal results. Specifically, correctly setting your printer’s dimensions within the Marlin firmware is crucial for accurate movement and, consequently, high-quality prints. Imagine a painter with a canvas of unknown size; their strokes would be uncertain and the final image distorted. Similarly, if your printer’s firmware isn’t aware of the physical boundaries of its movement, it can lead to a host of issues ranging from missed steps and layer shifts to catastrophic collisions. Therefore, understanding how to adjust these critical parameters is paramount to achieving printing precision and maximizing the capabilities of your 3D printer. This guide will walk you through the process of configuring these settings, empowering you to take control of your machine’s physical parameters and elevate your printing prowess.

First and foremost, locate the Configuration.h file within your Marlin firmware. This file acts as the central repository for all your printer’s configuration settings. Once you’ve opened this file in a suitable text editor, you can begin the process of adjusting the dimensional parameters. Specifically, you’ll need to modify the DEFAULT\_AXIS\_STEPS\_PER\_UNIT section. This section defines the number of steps your printer’s stepper motors need to take to move each axis one millimeter (or inch, depending on your configuration). Moreover, accurately calculating these values is critical. An incorrect value can lead to over- or under-extrusion, dimensional inaccuracies, and even damage to your printer. Furthermore, the X\_BED\_SIZE, Y\_BED\_SIZE, and Z\_BED\_SIZE parameters dictate the physical dimensions of your printer’s build volume. These parameters are essential for ensuring that your printer does not attempt to move beyond its physical limits. Precisely setting these values prevents potential damage and ensures the print head remains within the printable area. Subsequently, save the Configuration.h file after making these adjustments and upload the modified firmware to your 3D printer.

Finally, after uploading the modified firmware, it’s crucial to test the changes. Initially, you should perform a series of small test prints to verify the accuracy of your dimensional settings. Observe carefully for any signs of dimensional inaccuracies or unusual behavior. Additionally, a simple calibration cube is an excellent tool for this purpose. By measuring the dimensions of the printed cube and comparing them to the expected values, you can quickly identify any discrepancies. Furthermore, if you encounter any issues, revisit the Configuration.h file and double-check your calculations. Even a small error in these values can significantly impact print quality. Remember, meticulous attention to detail is key to achieving optimal printing results. In conclusion, by carefully adjusting these settings in your Marlin firmware, you can unlock the full potential of your 3D printer and achieve a new level of precision and control over your prints. The time invested in understanding and configuring these parameters will undoubtedly pay off in the long run with improved print quality and a more satisfying printing experience overall.

Accessing the Marlin Firmware

Alright, so you want to tinker with your Marlin firmware and adjust your printer’s dimensions? That’s a great way to ensure accurate prints! The first step is getting access to the firmware itself. This basically means finding the right files and getting them ready for editing. There are a couple of ways to do this, and the best method depends on how comfortable you are with software and code.

The most common way is by downloading the Marlin source code. You can grab the latest version from the official Marlin repository on GitHub. This is a giant hub where the developers constantly update and improve the code. Think of it like the master copy. Downloading this gives you all the files you need, but it also means you’ll need to configure and compile the firmware yourself before uploading it to your 3D printer. This involves choosing the right settings for your specific printer model, adding any custom features you want, and then using software to translate the human-readable code into something your printer’s processor can understand. While it sounds complicated, it’s a rewarding process that gives you maximum control.

If compiling feels a bit daunting, many 3D printer manufacturers provide pre-compiled firmware versions specifically tailored to their machines. These are often available on their websites’ support sections. This option is much simpler: download the correct file for your printer model, and you’re pretty much ready to upload. However, the customization options are more limited, and you might not have access to the latest Marlin features. Think of it as a ready-to-eat meal versus cooking from scratch.

Once you’ve obtained the firmware (either compiled or pre-compiled), you’ll need to find the Configuration.h and Configuration\_adv.h files. These files contain various settings, including the printer’s dimensions. We’ll dive into modifying those in the next section. Here’s a quick overview of the typical file access methods:

Method	Description
Downloading Marlin Source Code	Gives you complete control and access to the latest features, but requires compiling. Find these files in the Marlin directory after extracting the downloaded archive.
Pre-compiled Firmware	Simpler, but with fewer customization options. You might need to extract the firmware archive to access these configuration files. Sometimes, manufacturers include separate configuration examples.

Finding and choosing the right firmware is a crucial first step. Taking the time to understand your options will set you up for success in customizing your printer’s settings and improving your prints.

Understanding X, Y, and Z Axis Dimensions

Before diving into firmware modifications, let’s make sure we’re on the same page about what the X, Y, and Z axes represent on your Marlin 3D printer. These axes define the three dimensions of movement within the printer’s build volume. Think of them as the directions your print head can travel.

The X-axis typically represents the horizontal movement, or the width of your print bed. When your print head moves from left to right, it’s moving along the X-axis. The Y-axis represents the depth, moving from front to back on your print bed. Finally, the Z-axis is the vertical dimension, controlling the height of the print head and ultimately the height of your printed object. Understanding these axes is crucial for accurately defining your printer’s physical dimensions in the firmware.

Visualizing the Axes

Imagine your printer’s bed as a flat rectangle. The front left corner is typically the origin point (0, 0, 0). As the print head moves to the right, the X-value increases. As it moves towards the back, the Y-value increases. As the print head raises, the Z-value increases. Visualizing this coordinate system will help you determine the correct measurements when configuring your Marlin firmware.

Measuring Your Printer’s Dimensions

Accurately measuring your printer’s dimensions is paramount for successful prints. Incorrect measurements can lead to print failures, nozzle collisions, and general inaccuracies. Grab a ruler or calipers (for greater precision) and carefully measure the following:

X-Axis: Measure the maximum distance your print head can travel along the X-axis (width). This is usually the physical width of your print bed.
Y-Axis: Measure the maximum distance your print head can travel along the Y-axis (depth). This is usually the physical depth of your print bed.
Z-Axis: Measure the maximum vertical distance your print head can travel. This is the maximum height your printer can achieve.

Record these measurements carefully. Double-checking your work is always a good idea to avoid potential issues later.

Example Measurements and Common Pitfalls

Let’s say you measure the following:

Axis	Measurement (mm)
X	235
Y	235
Z	250

These measurements would be typical for a printer with a 235 x 235 mm print bed and a 250 mm Z-height. A common mistake is measuring the external dimensions of the printer frame instead of the actual travel distance of the print head. Remember, you are measuring the usable print area, not the overall size of the machine. Also, be sure your units are consistent. Marlin typically uses millimeters (mm). If your measurements are in inches or centimeters, convert them to millimeters before entering them into the firmware.

Understanding these axes and carefully measuring your printer’s dimensions will pave the way for accurate and successful printing. Once you have these values, you can confidently proceed to update your Marlin firmware.

Adjusting the X-Axis Dimension

Getting your printer’s X-axis dimension dialed in correctly within the firmware is crucial for accurate prints. If this setting is off, even by a small amount, you’ll notice dimensional inaccuracies in your prints – they might come out too wide or too narrow along the X-axis. This guide walks you through the process of adjusting this setting in Marlin firmware.

Understanding the DEFAULT_AXIS_STEPS_PER_UNIT Setting

The key to adjusting your X-axis dimension lies within a firmware setting called DEFAULT\_AXIS\_STEPS\_PER\_UNIT. This setting tells the printer how many steps its stepper motor needs to take to move the print head (or bed, depending on your printer’s configuration) exactly one millimeter along the X-axis. If this value is too high, the printer will under-extrude along the X-axis, making your prints too narrow. Conversely, if the value is too low, the printer will over-extrude, resulting in prints that are too wide.

Calculating the Correct Value

Calculating the correct DEFAULT\_AXIS\_STEPS\_PER\_UNIT for your X-axis requires a bit of math, but it’s straightforward. Here’s the formula:

Steps/mm = (Motor steps per revolution \* Microstepping) / (Belt pitch \* Number of teeth on pulley)

Let’s break down each component:

Component	Description
Motor steps per revolution	This is usually 200 for most stepper motors used in 3D printers. Check your stepper motor’s specifications if you’re unsure.
Microstepping	This is the setting on your stepper motor driver, often configured through jumpers. Common values are 1, 2, 4, 8, or 16. A higher microstepping value leads to smoother movement but can reduce torque.
Belt pitch	This refers to the distance between the teeth on your timing belt, typically 2mm for GT2 belts.
Number of teeth on pulley	This is the number of teeth on the pulley attached to your X-axis stepper motor.

Example Calculation

Let’s say your stepper motor has 200 steps per revolution, your microstepping is set to 16, you’re using a GT2 belt with a 2mm pitch, and your X-axis pulley has 20 teeth. The calculation would look like this:

Steps/mm = (200 \* 16) / (2 \* 20)
Steps/mm = 3200 / 40
Steps/mm = 80

In this example, your DEFAULT\_AXIS\_STEPS\_PER\_UNIT for the X-axis should be set to 80.

It’s important to double-check your specific hardware specifications, such as the microstepping setting and the number of teeth on your pulley, as these can vary. Using incorrect values will lead to inaccurate calculations and dimensional errors in your prints.

After calculating the correct value, you’ll need to update your Marlin firmware’s Configuration.h file. Locate the line that defines DEFAULT\_AXIS\_STEPS\_PER\_UNIT and change the X-axis value to your calculated result. Compile and upload the modified firmware to your printer. After flashing the new firmware, it’s always recommended to perform a calibration test print to verify the dimensional accuracy of your X-axis. If necessary, you can fine-tune the DEFAULT\_AXIS\_STEPS\_PER\_UNIT value in small increments until you achieve perfect dimensional accuracy.

Adjusting the Y-Axis Dimension

Getting your printer’s Y-axis dimension dialed in correctly is crucial for accurate prints, especially when creating larger objects. If your Y-axis is off, even by a small amount, you might find that parts don’t fit together properly or that your prints are slightly squished or stretched in one direction. Fortunately, Marlin firmware allows you to adjust this dimension directly in the firmware, ensuring consistent and accurate results. This adjustment compensates for any slight mechanical discrepancies in your printer’s construction or wear and tear over time.

Understanding the Y-Axis

The Y-axis typically represents the front-to-back dimension of your print bed. Think of it as the depth of your printable area. Adjusting this setting tells the firmware how far the print head needs to travel along this axis to cover the specified distance. This requires careful measurement and calculation to avoid introducing errors.

Measuring Your Actual Y-Axis

Before diving into the firmware, you need to accurately measure your printer’s actual Y-axis dimension. Use a precise measuring tool, like a caliper or a good quality ruler. Measure the distance between the two extreme points that the print head can reach along the Y-axis. It’s important to measure the actual movement range, not just the physical dimensions of the frame or print bed. Make sure your printer is powered off and the print head is moved manually to its extreme positions to avoid any risk of accidental movement during measurement.

Tips for Accurate Measurement

For the most accurate measurement, try these tips:

Ensure the belts are properly tensioned.
Move the print head to both extremes several times to settle it into position.
Take multiple measurements and average them.
Document your measurements for future reference.

Updating Marlin Firmware

Once you have your accurate Y-axis measurement, you need to update your Marlin firmware. This involves locating the Configuration.h file within your Marlin firmware. This file contains a plethora of settings, so use the search function (Ctrl+F or Cmd+F) to find the line that defines the Y-axis steps per unit, which usually looks something like this: #define DEFAULT\_AXIS\_STEPS\_PER\_UNIT { X, Y, Z, E }.

Calculating the New Y-Axis Steps

You shouldn’t directly change the DEFAULT\_AXIS\_STEPS\_PER\_UNIT value for the Y-axis without proper calculation. The correct way to adjust the Y-axis dimension is by calculating the new steps/mm value. The formula for this is:

Variable	Description
`New\_Steps/mm`	The new steps/mm value you need to calculate.
`Old\_Steps/mm`	The current steps/mm value for your Y-axis.
`Configured\_Y\_Dimension`	The Y-axis dimension currently defined in your firmware.
`Measured\_Y\_Dimension`	The Y-axis dimension you measured.

The formula is: New\_Steps/mm = (Old\_Steps/mm \* Configured\_Y\_Dimension) / Measured\_Y\_Dimension

Once you have calculated the new Steps/mm value, replace the existing Y-axis value in #define DEFAULT\_AXIS\_STEPS\_PER\_UNIT { X, Y, Z, E } with the newly calculated value. Save the Configuration.h file, compile the firmware, and upload it to your printer.

After flashing the updated firmware, it’s highly recommended to perform a test print to validate the changes. A simple calibration cube is an excellent choice for this purpose. Measure the dimensions of the resulting cube, particularly along the Y-axis, to confirm the accuracy of your adjustment. If the dimensions are not correct, re-check your measurements and calculations, and repeat the process.

Adjusting the Z-Axis Dimension

Getting your Z-axis dimension dialed in correctly is crucial for successful 3D printing. An inaccurate Z-height can lead to a host of issues, from a nozzle that’s too close to the bed, causing grinding and underextrusion, to a nozzle that’s too far away, leading to poor first layer adhesion and a print that fails to stick. Fortunately, Marlin firmware provides a straightforward method for calibrating your Z-axis, ensuring accurate and consistent print heights.

Manual Z-Axis Endstop Adjustment

The most common approach to setting the Z-axis dimension involves physically adjusting the position of your Z-axis endstop. This small switch tells your printer where “zero” is on the Z-axis. You’ll typically find this switch mounted near the bottom of your Z-axis assembly.

Before you begin, home your Z-axis. This moves the nozzle down until it triggers the endstop switch. Once homed, you can fine-tune the Z-endstop position. Loosen the screws securing the endstop and carefully adjust its position until a piece of paper placed between the nozzle and the print bed offers just a slight amount of resistance. Tighten the screws once you’re satisfied.

Verifying Z-Height with a Test Print

After adjusting your endstop, printing a small test object, like a single-layer calibration cube, is highly recommended. Observe the first layer carefully. You’re looking for a smooth, even surface with the extruded filament slightly squished onto the bed. If the nozzle is digging into the bed, raise the endstop slightly. If the filament isn’t sticking, lower it. Repeat this process until you achieve a perfect first layer.

Software-Based Z-Offset Adjustment

In addition to the physical endstop, Marlin also allows for a software-based Z-offset. This offset value is added to or subtracted from the physical endstop position, providing even finer control over your Z-height. You can adjust this offset through your printer’s LCD menu or via host software like Pronterface or OctoPrint. This method is particularly useful for making small adjustments without needing to physically access the endstop.

Understanding Z-Offset Values

A positive Z-offset value moves the nozzle further away from the bed, while a negative value moves it closer. Adjustments are typically made in increments of 0.1mm or even smaller. Keep track of your Z-offset adjustments so you can easily revert if necessary.

Saving the Z-Offset

Crucially, after adjusting your Z-offset, remember to save the changes to your printer’s EEPROM. This ensures the setting is retained even after powering down the printer. Different printer models have different methods for saving to EEPROM, so consult your printer’s documentation for specific instructions. Neglecting this step means your adjustments will be lost upon restart.

Troubleshooting Common Z-Axis Issues

Several factors can influence your Z-height calibration. An uneven print bed, variations in filament diameter, or even temperature fluctuations can affect your results. Here’s a table summarizing common problems and solutions:

Problem	Solution
Nozzle too close to the bed (grinding)	Raise the Z-endstop or increase the Z-offset.
Poor first layer adhesion	Lower the Z-endstop or decrease the Z-offset.
Inconsistent first layer height	Check for an uneven print bed or warped build surface. Consider a bed leveling procedure.
Z-offset value not saving	Ensure you are saving the value to EEPROM after making adjustments. Check your printer’s documentation for the correct procedure.

By carefully adjusting your Z-axis dimension and employing these troubleshooting tips, you can significantly enhance the quality and reliability of your 3D prints, minimizing the frustrations associated with a misaligned Z-height.

Remember, achieving a perfect first layer is fundamental to a successful print. By mastering Z-axis calibration, you’re laying a solid foundation for high-quality 3D printing experiences. Regularly check and adjust your Z-offset as needed, especially if you change filament types or experience variations in print quality.

Uploading the Modified Firmware to Your Printer

Alright, so you’ve tweaked your Marlin firmware to reflect your printer’s precise dimensions. Now, it’s time to get that updated code onto your printer’s mainboard. This process varies slightly depending on your printer model and mainboard, but the general principles remain the same. We’ll cover the most common methods here.

Method 1: Using an SD Card

This is the most common and generally easiest method. First, save the compiled firmware file (usually with a .hex extension) to the root directory of a formatted SD card. Make sure the filename is correct; some printers require a specific name like firmware.bin. Consult your printer’s documentation for specifics. Next, with the printer turned off, insert the SD card into the printer’s SD card slot. Turn the printer on. The printer should detect the firmware file on the SD card, automatically flash it to the mainboard, and then reboot. Once the printer has restarted, your new firmware with the corrected dimensions should be active.

Method 2: Using a USB Connection

Some printers allow firmware updates directly over USB. This typically involves using a specific program provided by the printer manufacturer. For example, printers using the Pronterface software often use this method. Connect your printer to your computer via USB. Open the appropriate flashing software. Select the compiled firmware file (.hex) you want to upload. Start the flashing process. The software will handle transferring the firmware to your printer and installing it. The printer will likely reboot automatically after the process is complete.

Troubleshooting Upload Issues

Sometimes, firmware uploads don’t go as smoothly as planned. If you encounter problems, here are a few things to check:

Problem	Potential Solution
Firmware not detected	Double-check the filename and make sure it’s placed in the root directory of the SD card. Try reformatting the SD card. Verify the SD card is not faulty by trying a different one. Ensure the printer is designed for SD card updates.
Upload process fails or stalls	Try a different USB cable. Make sure your printer is properly connected to your computer. Ensure you’re using the correct flashing software and driver versions. Verify the firmware is compatible with your printer’s mainboard.
Printer doesn’t reboot after upload	Manually power cycle the printer. Check for error messages on the printer’s LCD screen.

Method 3: Using PlatformIO CLI

For those comfortable with the command line, PlatformIO offers a convenient method for flashing Marlin firmware. After installing PlatformIO, navigate to your Marlin firmware directory in your terminal. Connect your printer to your computer via USB. Then, depending on your printer’s mainboard, you will use a specific command to upload the firmware. For example, you might use a command like pio run -t upload for certain boards. Consult the PlatformIO documentation and your board’s specifications for the appropriate command. PlatformIO handles all the necessary communication and flashing procedures, streamlining the update process.

Important Considerations

Before you upload any firmware, ensure you have the correct version for your printer model and mainboard. Uploading incompatible firmware can damage your printer. Always double-check everything before proceeding. Also, make a backup of your existing firmware just in case something goes wrong. It’s better to be safe than sorry! After successfully uploading the modified firmware, it’s a good idea to re-run any calibration procedures, especially bed leveling, to account for the adjusted dimensions.

Verifying the New Printer Dimensions

After flashing your firmware with the adjusted printer dimensions, it’s crucial to verify that the changes have been applied correctly. Failing to do this could lead to print head crashes, inaccurate prints, and other frustrating issues. Luckily, there are a couple of straightforward methods to double-check everything.

Most Marlin-based 3D printers offer a way to view the configured printer dimensions directly on the LCD control panel. Navigate through the menu system; the exact location varies depending on the specific Marlin version and the printer’s LCD controller, but it’s typically found under a ‘Configuration’ or ‘Settings’ menu, potentially nested under an ‘Advanced Settings’ submenu. Look for options labeled ‘X Max,’ ‘Y Max,’ and ‘Z Max.’ These values represent the maximum travel distance along each axis and should correspond to the dimensions you set in the firmware.

Manual Measurement

While the LCD menu offers a quick overview, it’s highly recommended to perform a physical measurement to be absolutely certain. This is particularly important for verifying the Z-axis dimension, as discrepancies here can easily lead to nozzle collisions with the bed.

X and Y Axis Verification

For the X and Y axes, use a ruler or tape measure to measure the distance the print head can travel along each axis. Home the printer first to ensure the print head is at its origin (0,0,0). Then, manually move the print head to its maximum extent along the X-axis and measure the distance from the origin. Repeat this process for the Y-axis. These measurements should match the X and Y dimensions you programmed into the firmware.

Z Axis Verification

Verifying the Z-axis is slightly more involved but just as important. Home all axes. Then, slowly move the Z-axis upwards until it reaches its maximum limit. Measure the distance from the bed surface (or nozzle tip if it’s below the bed when homed) to a fixed point on the Z-axis carriage. This measurement should correspond to your configured Z-axis height.

Troubleshooting Discrepancies

If your measured dimensions don’t match your configured dimensions, double-check the firmware changes you made. Ensure the correct values were entered and saved, and that the correct firmware version was compiled and flashed. It’s easy to make a typo or accidentally flash an older version of the firmware. If you’re certain your firmware is correct, revisit your printer’s wiring. In rare cases, incorrectly wired endstop switches can cause measurement inconsistencies.

Here’s a quick summary table of potential issues and solutions:

Problem	Potential Solution
Measured dimensions are smaller than configured dimensions	Check endstop wiring and configuration. Ensure endstops are triggering correctly.
Measured dimensions are larger than configured dimensions	Verify the correct firmware values were entered and saved. Re-flash the firmware if necessary.
Z-height is incorrect	Double-check Z-endstop positioning and wiring. Make sure the Z-offset is calibrated correctly.

Taking the time to verify your new printer dimensions will save you from potential headaches down the road and contribute to a more reliable and enjoyable 3D printing experience.

Setting Printer Dimensions in Marlin Firmware

Accurately defining your printer’s physical dimensions in Marlin firmware is crucial for achieving precise and reliable prints. Incorrect dimensions can lead to a variety of issues, from minor inaccuracies in print size to serious problems like the print head colliding with the frame. This process involves modifying specific parameters within the firmware configuration files, requiring a careful and methodical approach. Understanding the relationship between these parameters and your printer’s physical construction is essential for successful configuration. Once correctly set, these dimensions inform the firmware about the boundaries of the printable area, ensuring the print head operates within the safe confines of your machine.
